Gallon water production line consists of empty bottle transferring, internal bottle brushing, auto de-capper, external bottle brushing, rinsing filling capping, light checker, neck shrinker, bagging, full bottle transferring and pallitizer, enabling full automatic intelligent production. The whole process is strictly controlled, which ensures the complete compliance with customer's local standards and regulations set up by their Health Department. During filling process, secondary pollution is strictly controlled, which makes it an ultra-clean production line. It's a most ideal, acknowledged and reliable automatic gallon water production line for companies and factories. This line is mainly used for filling pure water or mineral water of 3 & 5 gallon bottle.
Availability: | |
---|---|
Quantity: | |

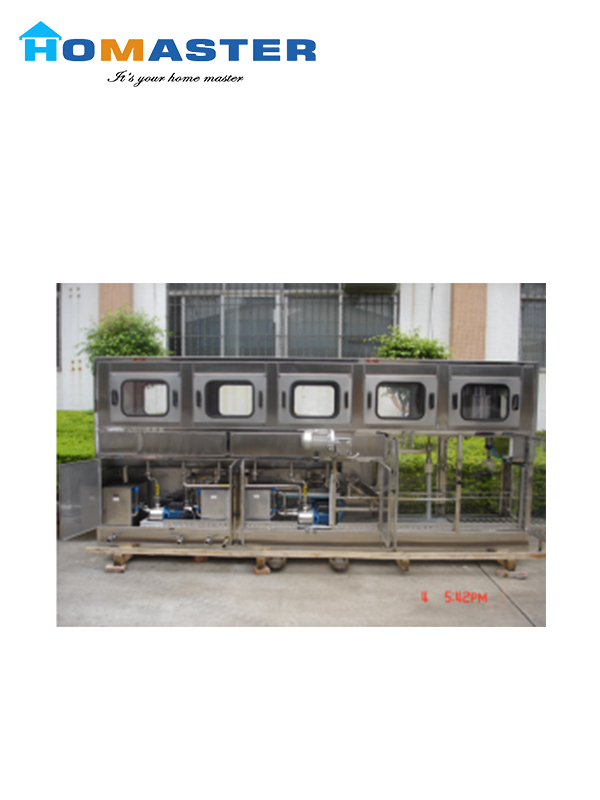

H-100/J(300 BPH Gallon Filling Machine)
OEM
Product details
Item: H-100/J(300 BPH Gallon Filling Machine)
Name | Specifications | Quantity |
Water Pump | use for washing & filling, model 055 | 7 |
Gear Motor | use for washing & transmission 0.37KW/220V/380V | 1 |
Cap arranging unit | Including motor | 1 SET |
Proximity Switch | Ni-Q25-AN6x (TURCK) | 2 |
Indicator Light | AD series | 4 |
Push Button Switch | LA series | 4 |
Leakage Air Switch | DZ47LE-40 | 1 |
Signal Relay | MY2NJ-220VAC(OMRON) | 5 |
Air Cylinder | 50*50 | 2 |
Air Cylinder | 50*525 | 1 |
Stainless steel Solenoid valve | L15 *2PCS,L20*2PCS | 4 |
Nozzle | American spray system | 10 |
Air Pressure Switch | YK06 | 1 |
Triplet | BFC-3000 | 1 |
Air Pressure Solenoid valve | 4V210-08 (AirTAC) | 4 |
PLC (programmable logic controller) | M STER-K30S1 (LG) | 1 |
AC Contactor | GJX2-0910 | 7 |
Fuse Base | RT18-32 | 6 |
Work Station Distribution | First work station: wash by medicinal liquid | |
Second work station: wash by medicinal liquid | ||
Third work station: wash by medicinal liquid | ||
Forth work station: drip dry | ||
Fifth work station: wash by water | ||
Sixth work station: wash by pure water | ||
Seventh work station: Filling | ||
Eighth work station: cover the cap & press the cap | ||
Water Tank | Medicinal liquid Tank | 1 |
Pure Water Tank | 1 | |
Pipeline | PVC-U/SUS304 | |
Material of Structure | 50MM*50MM*1.5MM | |
Material of Close plate | 1.5-2.0MM | |
Machine Size | 3570MM*880MM*1700MM | |
Packaging Size | 3600MM*1300MM*1700MM | |
Net Weight | 550kG | |
Gross Weight | 900kG |
Our advantage:
1.Professional service: from inquiry ->make sample ->start order -> inspection->delivery We have 1 to 1 pecial service for each client.let client control each Step of order.Base on our service,you can sleep well.
2.Good quality: we have own professional quality control team, make sure the order quality Is complee good before shiping.Let client never worry about quality.
3.Competitive price: we can't say our price is lowest,but we can say our price is what client need,base on our support,you will get more!
