HSHS-1414Q
OEM
Product details

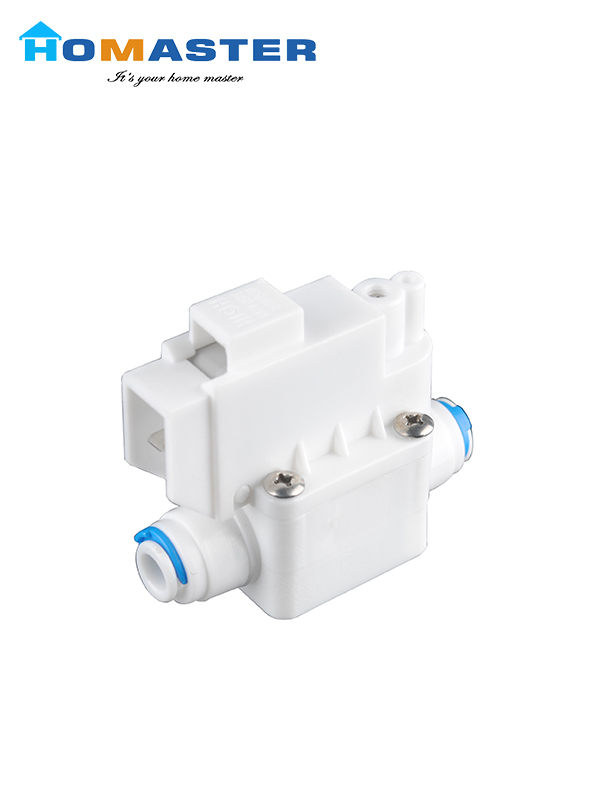

Item: HSHS-1414Q
◆High pressure switch control the action of inside micro-switch and some electrical work with the changing of conduction pressure.
◆The cavity of pressure conduction+EPDM seal +pressure conducti-on bar+single normally open-type micro-switch.
◆Main material:make of the food grade POM which with NSF and FD-A quality.
◆The material for the rubber used inside is EPDM which with NSF and FDA approval.
◆Metal screw:SUS304
◆Micro-switch:silver point single normally open-type/electric current 6A/S187 insert.
◆Inlet pressure stress:2.5Mpa.
◆Test life: Water hammer 12 Mpa water cycle+EPDM menbrane seal with one hundred thousand times.
