HNSW-1414Q
OEM
Product details

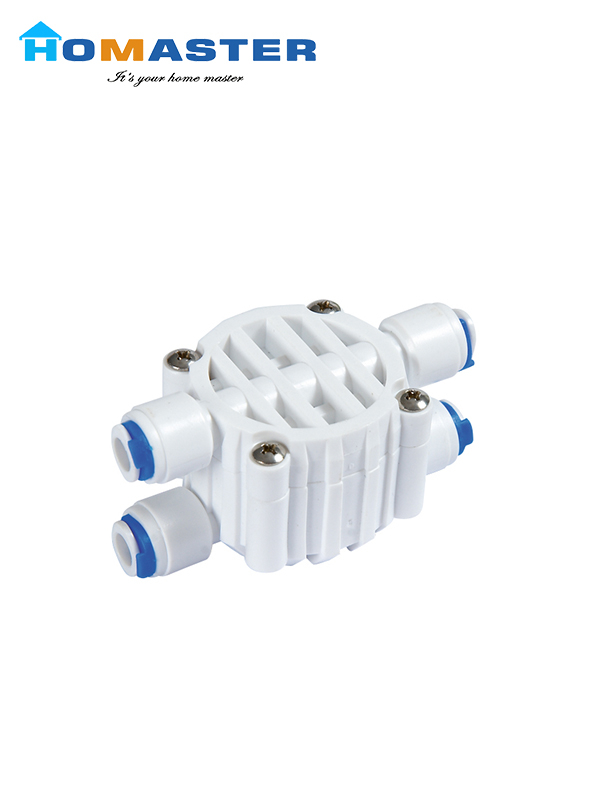

Item: HNSW-1414Q
Shut off valve used two different ways of water pressure
◆Difference to block the flow.when a channel of water pressure≥50% of another water pressure then the inlet flow will be blocked.
◆Main material:make form the food grade POM which with NSF and FDA quality.The material for the rubber used inside is EPDM which with NSF and FDA approval.
◆The material of metal screw is SUS 304.
◆Test life:water hammer 12Mpa water cycle+EPDM membrane seal with one hundred thousand times.
◆Inlet pressure test stress:1.5Mpa
◆When use this product in RO filtration system:
1.without any electricity.
2.lower cost(compare with magnetic valve)
3.simple structure,stability and no need to maintain Maximum inlet
◆water pressure:1.2Mpa.
◆Connector:insert quick connection 1/4 " 1/4" NPT 7/16 thread connector(with screw nut)
◆With quick fitting
