HNLS-1414
OEM
Product details

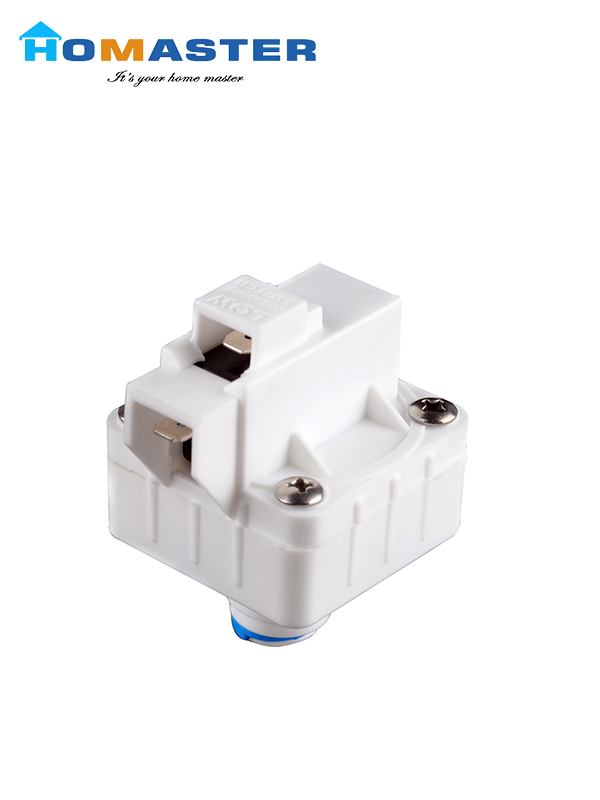

Item: HNLS-1414
◆Low pressure switch control the action of inside micro-switch and some electrical work with the conduction pressure.
◆The cavity of pressure conduction+EPDM seal+pressure conducti-on bar+single normally open-type micro-switch.
◆Main material:make of the food grade POM which with NSF and FD-A quality.
◆The material for the rubber used inside is EPDM which with NSF and FDA approval. Metal screw:sus304
◆Micro-switch:silver point single normally open-type/electric current 6A/S187 insert .
◆Conduction pressure:≥0.02Mpa(conventional)
Shut off pressure:≤0.01Mpa(conventional)
◆Inlet pressure:2.5Mpa
◆Test life:water hammer 12Mpa water cycle+EPDM membrane seal with one hundred thousand times.
◆Inlet connection:insert connection 1/4"
